The Onan marine range.

MDKBH

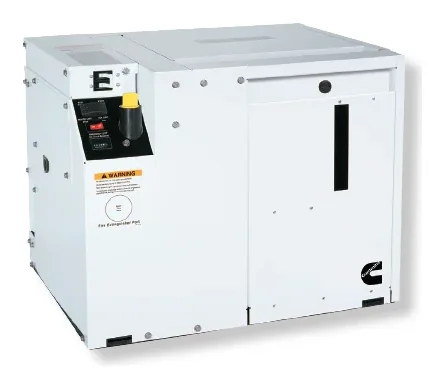

Onan QD 4/5

50 Hz

4 kW

60 Hz

5 kW

Output

Single phase

Engine

2-cylinder Kubota diesel

Speed at 50 Hz

2400 rpm

Size with shield

676 x 513 x 526 mm, 166 kg

Available ignition protected, for boats with petrol engines.

MDKBJ, MDKBW

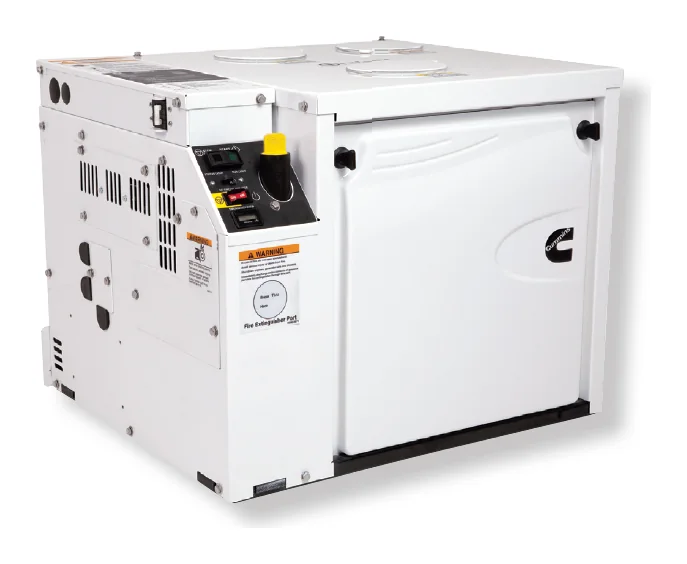

Onan QD 6/7.5/8

50 Hz

6, 8 kW

60 Hz

7.5 kW

Output

Single phase

Engine

3-cylinder Kubota diesel

Speed at 50 Hz

2400 rpm (8 kW: 2880 rpm)

Size with shield

664 x 583 x 535 mm, 196 kg

MDKBK, MDKBL

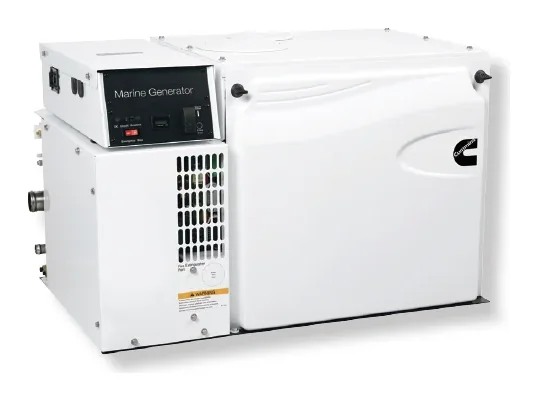

Onan QD 7/9

50 Hz

7 kW

60 Hz

9 kW

Output

Single phase

Engine

3-cylinder Kubota diesel

Speed at 50 Hz

1500 rpm

Size with shield

925 x 580 x 593 mm, 272 kg

Also as a Space Saver: 824 x 479 x 560 mm, 238 kg.

MDKBM, MDKBN

Onan QD 9.5 to 13.5

50 Hz

9.5, 11 kW

60 Hz

11.5, 13.5 kW

Output

Single phase

Engine

4-cylinder Kubota diesel

Speed at 50 Hz

1500 rpm

Size with shield

1,047 x 580 x 593 mm, 315 kg

MDKDP, MDKDR

Onan QD 13.5 to 21.5

50 Hz

13.5, 17.5, 19 kW

60 Hz

17, 21.5 kW

Output

Single or three phase

Engine

4-cylinder Kubota marine diesel

Speed at 50 Hz

1500 rpm

Size with shield

1,139 x 602 x 698 mm, 404 kg

MDKDS, MDKDT, MDKDU

Onan QD 22.5 to 29

50 Hz

22.5, 27 kW

60 Hz

29 kW

Output

Single or three phase

Engine

4-cylinder Kubota marine diesel

Speed at 50 Hz

1500 rpm

Size with shield

1,358 x 622 x 761 mm, 601 kg

MDDC

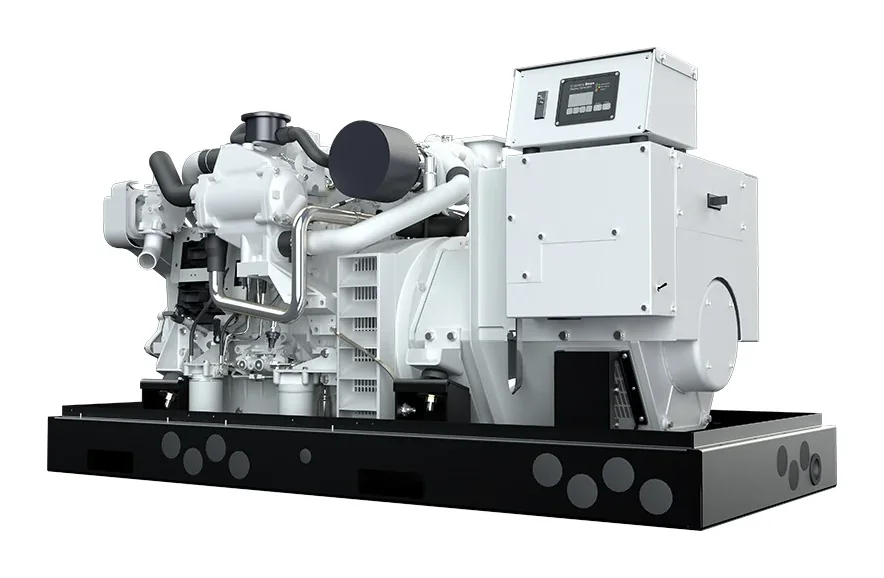

Onan QD 40 to 110

50 Hz

40, 55, 58, 65, 73, 80, 99 kW

60 Hz

40, 45, 55, 65, 80, 85, 98, 110 kW

Output

Single or three phase

Engine

Cummins B4.5, turbocharged

Speed at 50 Hz

1500 rpm

Size with shield

1,782 x 833 x 1,036 mm, 1,156 kg

Two frames: 40 to 65 kW at 1782 x 833 x 1036 mm and 1,156 kg; 73 to 99 kW at 1947 x 904 x 1129 mm and 1,453 kg (50 Hz). For recreational and commercial use.
